2 in 1 car seat

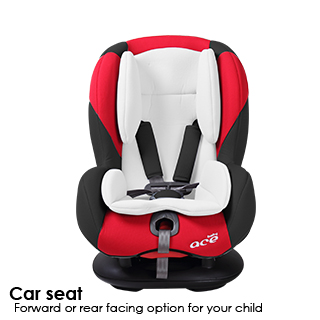

TC411 Car Seat

Reversible to car seat and sitting./ Group 0+/1 Car seat for newborn to around 4 years old(between 3 kg-18 kg in weight)./ Forward or rear facing option for your child./ Easy to fit into the car with car safety belt./ Multi-position reclining seat.

Suitable Age /Maximum Only use for a child from newborn to a maximum weight of 18kg. Size W520 x D450 x H670(mm) Weight:6.9(kg) Notes Read these instructions carefully before use and keep them for future reference. Your child's safety may be affected if you do not follow these instructions.   CNS 11497

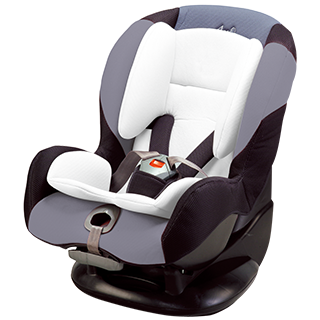

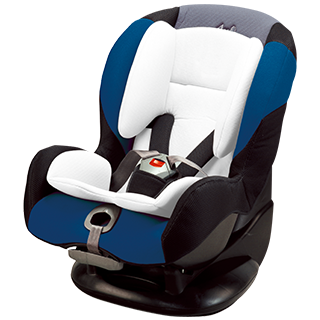

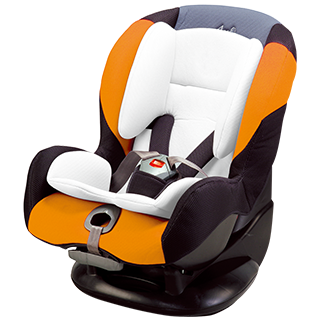

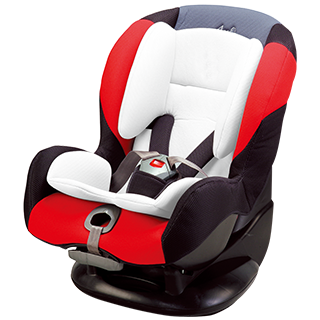

Colours









Rear facing

Pull out the angle adjuster nder the front of the seat until the angle adjuster is stuck in to yhe vehicle seat firmly.

Pull the recline handle under the front of the seat upwards and then push the seat backwardw to the desired position.

Pass the vehicle belt through the rear facing belt slots.

Make sure that the buckle tongues are inserted into the buckle and there is no gap between the backside of passenger front seat and the backside of restraint.

Forward facing

Push back the angle adjuster.

Pass the vehicle belt through the appropriate slots and pass shoulder belt the belt clamp and waist belt through the Forward-facing belt slots.

Insert yhe buckle tongue in to the buckle.

Kneel on the child restraintto force it into the vehicles seat while pulling the shoulder and waist belt tight,then buckle.

Features

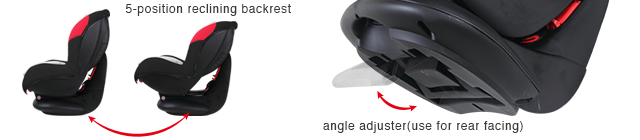

5-position reclining backrest	Angle adjuster



5-position safety harness	Adjustment lever for belt system
